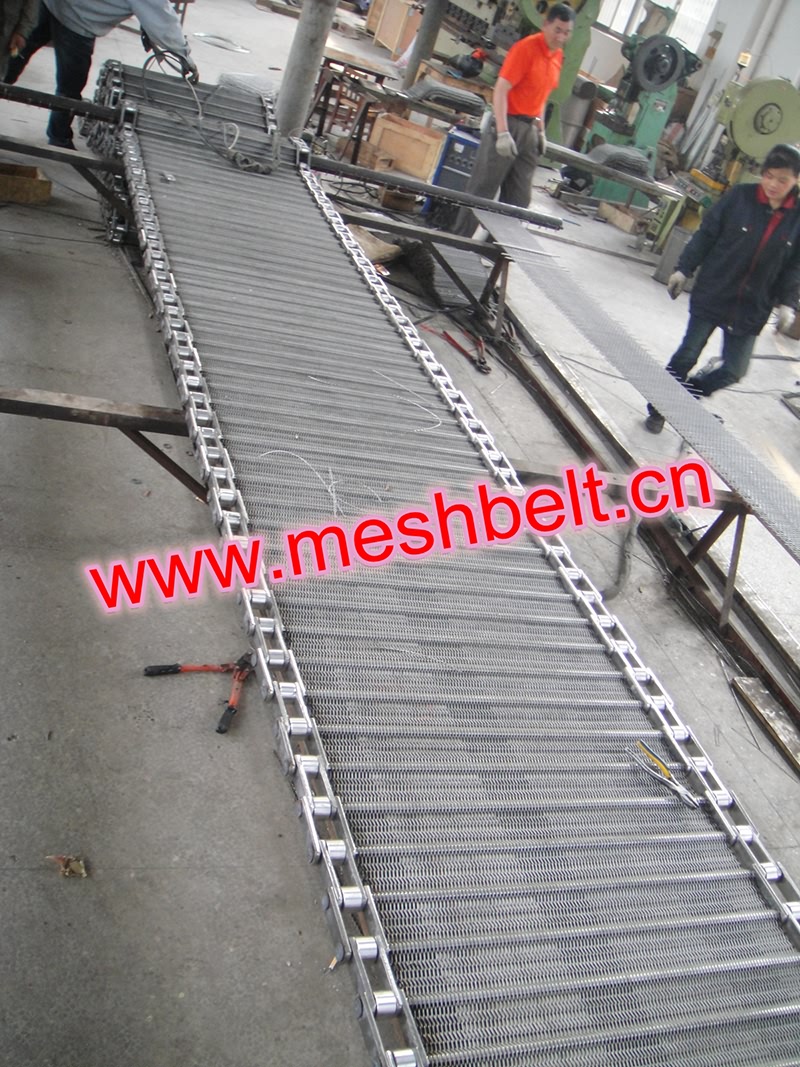

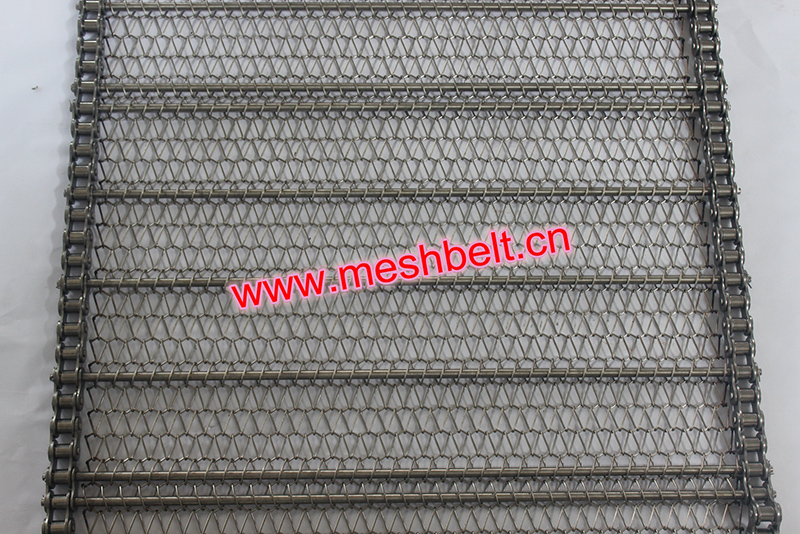

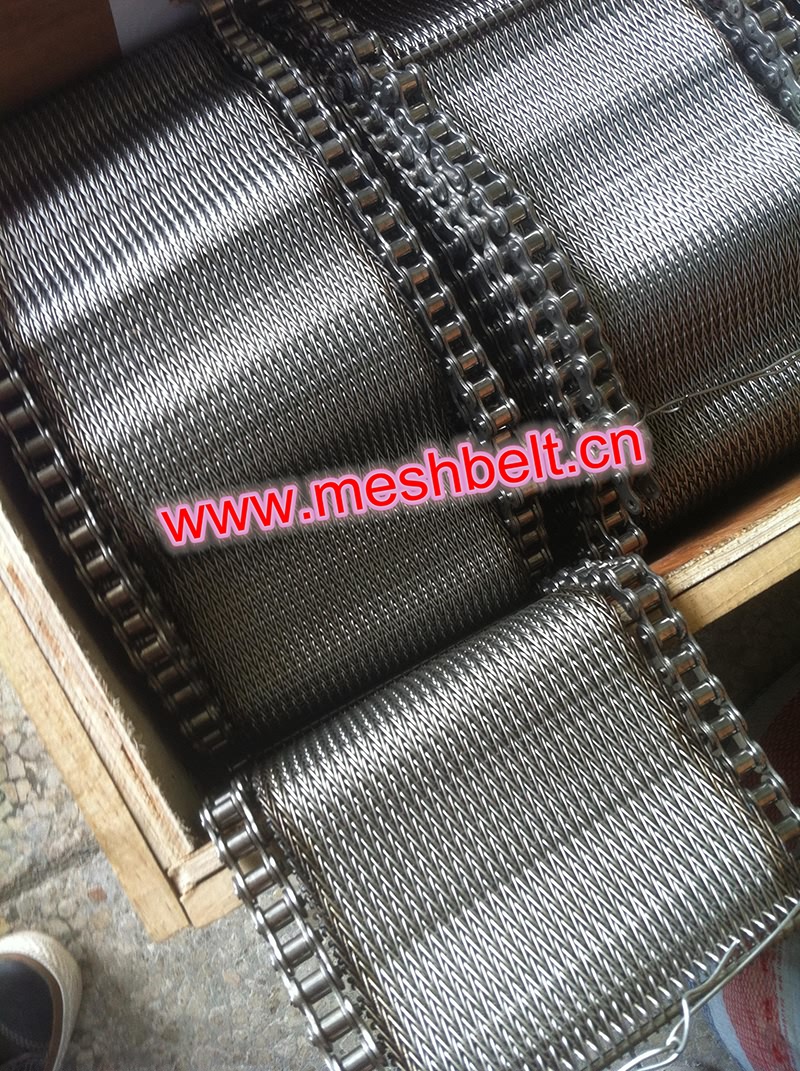

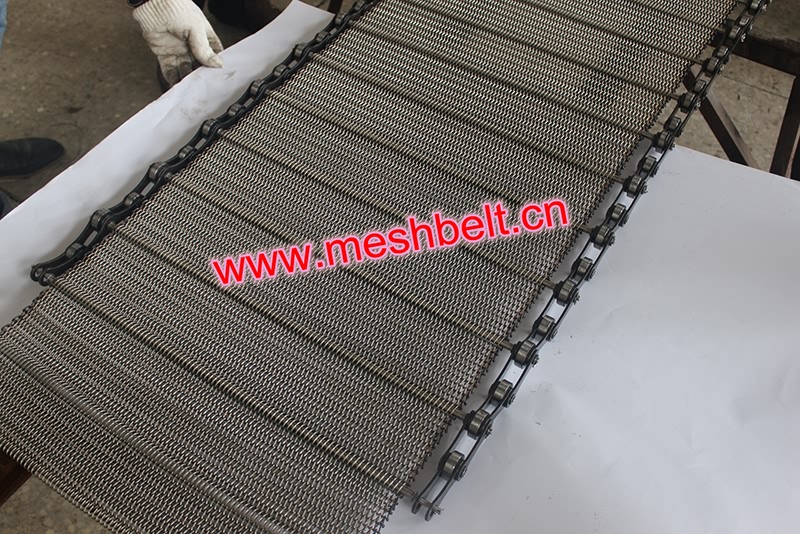

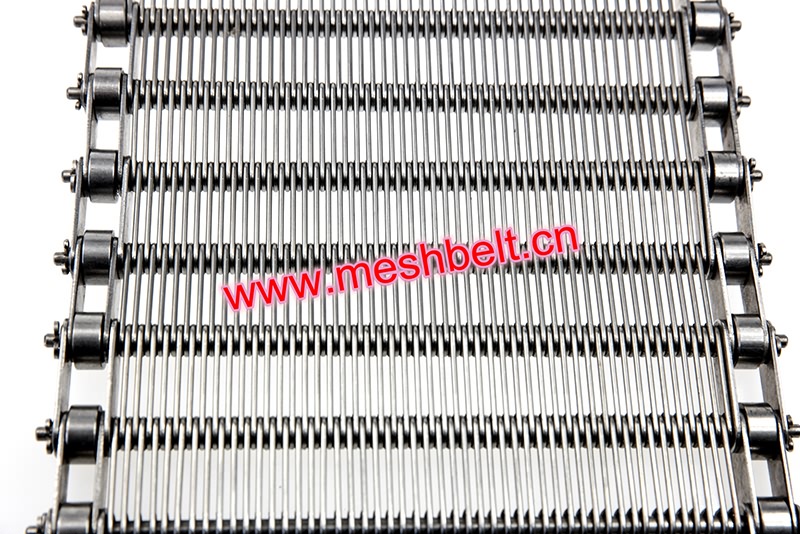

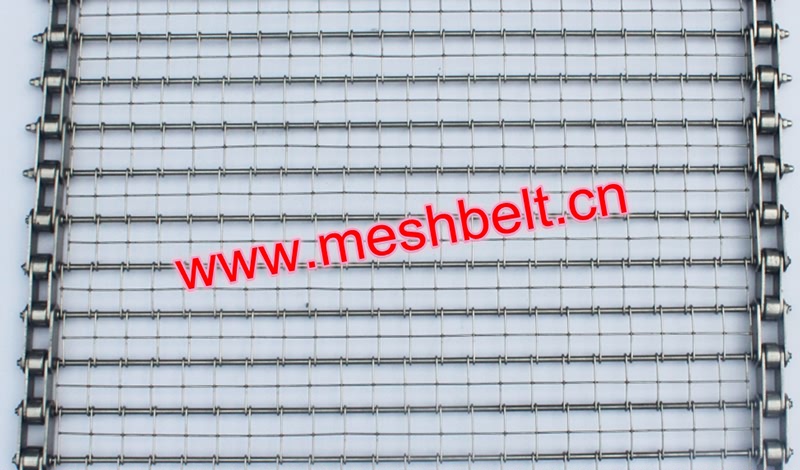

Chain driven mesh belt

Chain conveyor belts assure positive, true forward movement under the most difficult conditions.

Under moderate temperatures chain drives are very desirable and actually do the driving, the belt itself being used as a conveying medium only.

For high temperature work where chain drive is desirable belt is constructed with a chain of special heat resistant alloy.

Practically various link chain or roller chain may be used.

Edges, dividers and flights may also be added

Bars, angles, channels, rods, pipe or tubing may be passed through or attached to the spiral and fixed to chain by means of chain accessories or by acting as pins of the chain

Advantages：

1) Because chain is driven by sprocket, meandering does not occur.

2) Various types of chain can be applied by adjusting belt pitch

3) It’s easy to attach side guard and product stopper in combination with chain and cross rod.

Available materials:

1) Carbon steel

2) Galvanized

3) AISI 314 (1150°C)

4) SUS 310S (1090°C)

5) SUH 330 (1150°C)

6) SUS 304 (870)

7) Super alloy Cr20Ni80 (1250°C) electrical furnace wire

8) SUS 321 (750°C)

9) SUS 410 (700°C)

10) SUS 430 (700°C)

11) Various metal materials as per your requirements

Typical applications:

1) Heat treating

2) Metal working

3) Food processing

4) Snack food

5) Ceramics

6) Baking

7) Industrial curtains

8) Curing

9) Shrink-wrapping

10) Lifting slings

11) Elevating

12) Cladding

We can make chain driven belt against your photo, drawing or sample.
